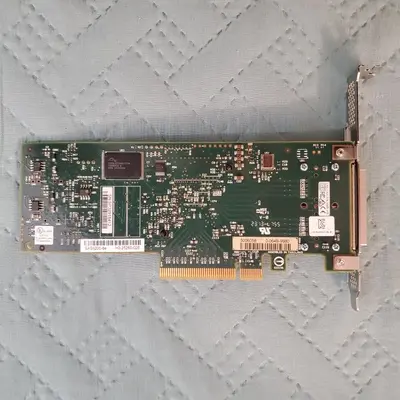

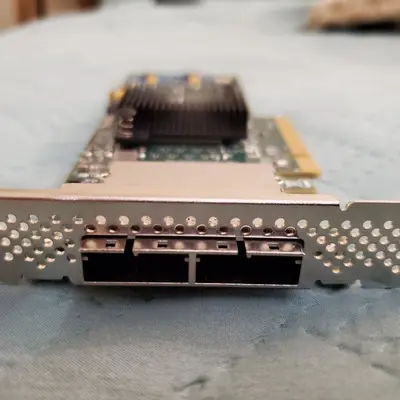

LSI SAS 9200-8e 8-Port 6Gb/s SAS/SATA Host Bus Adapter

Mfr Part Number: LSI00188 (9200-8E SINGLE) Features: 6Gb/s data transfer rate per port Two x4 external SFF8088 Mini-SAS connectors x8 5GT/s PCI Express 2.0 host interface MD2 low-profile form-factor design Maximum power usage of 9W Connects to SAS and SATA HDDs, SSDs, and tape drives Support for up to 512 physical devices Fusion-MPT architecture can achieve more than 290,000 I/Os per second PowerPC 440 @533MHz Supports all major operating systems RoHS compliant SAS Bandwidths: Half Duplex: Single Lane - 600MB/s; Wide Port (2 Lanes) - 1200MB/s; Wide Port (3 Lanes) - 1800MB/s; Wide Port (4 Lanes) - 2400MB/s; Wide Port (2x 4) - 4800MB/s Full Duplex: Single Lane - 1200MB/s; Wide Port (4 Lanes) - 4800MB/s Bracket: Full Height and Low Profile PCI Bus: 8-lane, 5 GT/s PCI Express 2.0 SAS Bus: 2x4 6Gb/s SAS & SATA Ports SAS Controller ASIC: LSISAS2008 Internal Connectors: 2x x4 Mini-SAS SFF8088 Integrated RAID Levels: Non-RAID Max. Number of SATA and SAS Physical Devices: 512 PCI Voltage: +12V ± 10% PCI Power: 13.5 Watts MTFB: >2,000,000 Hours Support OS: Microsoft Windows, Linux (SuSE, Red Hat), Solaris, VMware PCI Form Factor: MD2 Low-Profile, 6.6 x 2.536 inch
